GC Universal Modern 15-70

Part Number: GCM15

The Archergas® GC Universal Modern produces a maximum head of just over 7 meters and is a pulse width modulating replacement circulator head, as well as being able to fit many integrated circulators it can also be used on standalone circulators like the UPS3, UPM3, UPM4 and the ALPHA2 GO. As with all Archergas® circulators, it is fully ERP compliant with an impressive energy efficiency index rating of less than 0.20. The GCM15® is suitable for boilers, radiators, underfloor heating, cooling, solar, recirculation (non-potable) and air source heat pump systems.

Due to our quality focused approach to manufacturing and our use of high end component materials, this circulator is resistant to condensation, corrosion, high pressure and high temperatures. It also comes with a 3 year guarantee and can be used as a head replacement for a large number of integrated circulators as well as modern standalones and the ALPHA2 GO, see the table below for boiler OEM codes or use the Archergas® app on iOS or Android to search by model names or GC numbers:

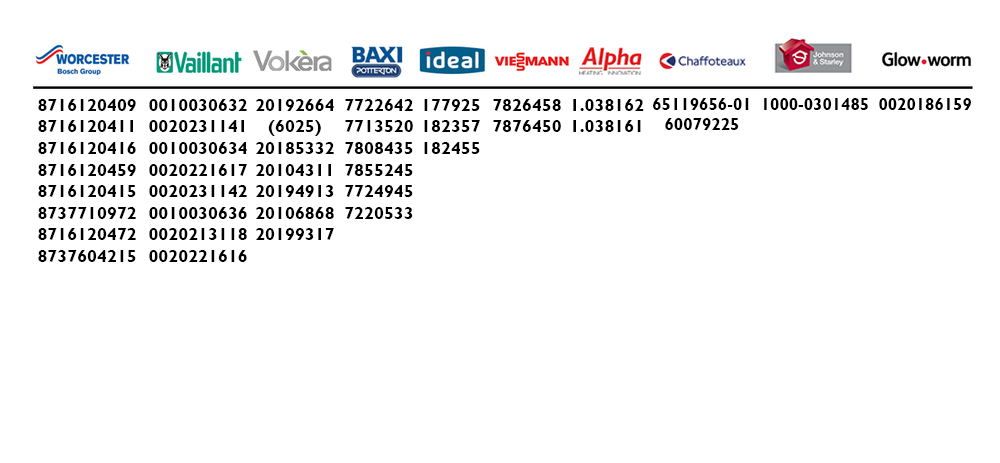

Boiler Manufacturer Codes GCM15® Replaces:

Specification:

Part Number: GCM15

Maximum Head: 7 Meters

Maximum Flow Rate: 65 Litres Per Minute

Maximum System Pressure: 10 Bar

Energy Efficiency Index Rating (EEI): ≤ 0.20

CE/UKCA Approved: Yes

Speed Control: 6 Modes

Protection Class: IP44

Temperature Class: TF95ºC

Insulation Class: F

Supplied With: Rubber Washers x2

Material: Cast Iron

Colour: Royal Blue

Weight: 1.4kg

The benchmark for the most efficient circulators is EEI ≤ 0.20

GCM15® is a registered trademark owned by Archergas Limited

This is both a standalone and integrated replacement circulator head meaning it can be used both inside and outside of appliances like boilers and heat pumps
