Archergas® Single Booster 15-90/160
Part Number: BOOSTER15
UK Registered Trademark Certificate
The Archergas® Single Booster produces a maximum head of just over 9 meters with a standard 3/4 threaded connection. The pump has 3 modes of control and a standard 160mm port to port size. The BOOSTER15® is suitable for boosting pressure on single appliances in domestic applications. It also comes with a 5 year guarantee and can be used as a direct replacement for a large number of other models, some of which are listed below:
Replaces:
Make | Model
Grundfos | UPA 15-90N
Wilo | 135MA
BritTherm | S2, B2 & W1
Antares | 15-9AB

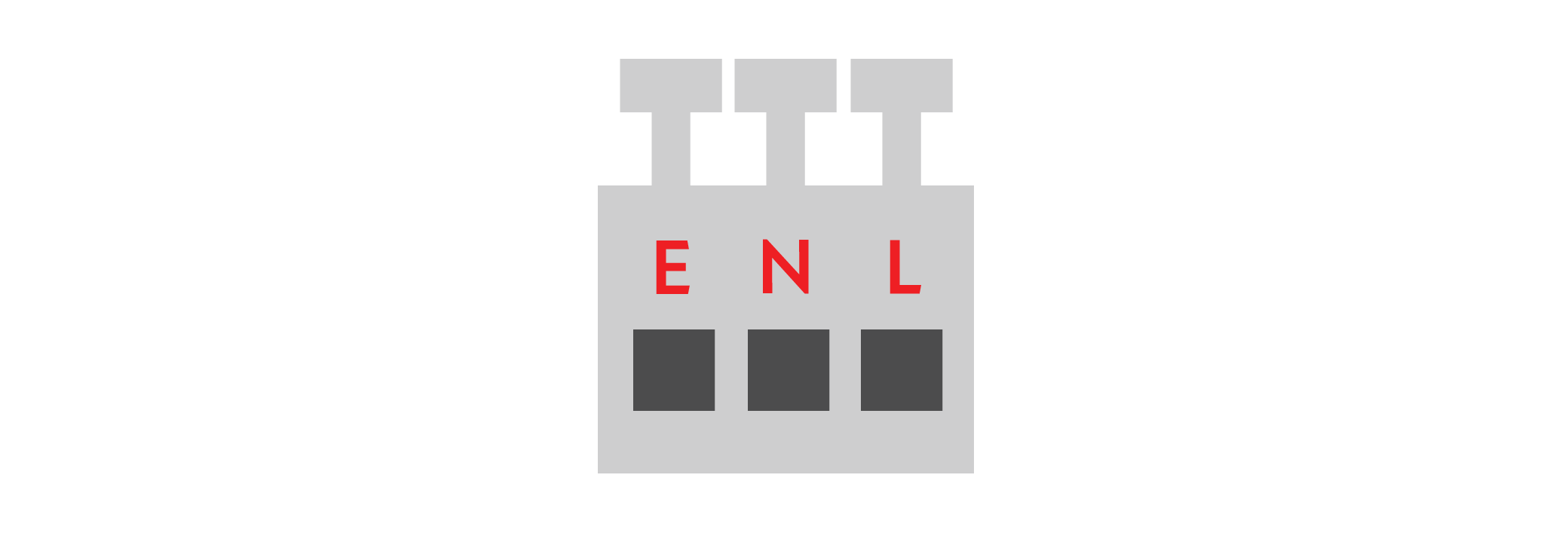

Wiring:
*With the cable grommet facing down and the impeller to the left, ensure wiring is correct from left to right as below with the earth being closest to the impeller
Specification:
Part Number: BOOSTER15
Connection Size: ¾”
Port to Port Distance: 160mm
Maximum Head: 9 Meters
Maximum Flow Rate: 23 Litres Per Minute
Maximum System Pressure: 6 Bar
CE/UKCA Approved: Yes
Speed Control: 3 Modes (Manual/Auto/Off)
Protection Class: IP44
Temperature Class: TF110ºC
Insulation Class: F
Supplied With: Rubber Washers x2
Material: Stainless Steel
Colour: Black & Silver
Weight: 2.4kg
The benchmark for the most efficient circulators is EEI ≤ 0.20
BOOSTER15® is a registered trademark owned by Archergas Limited
This standalone circulator is not for head changes or use inside boilers
